Workflow Builder for developers – React SDK, NPM package, reference back-end

Build a production workflow editor without rebuilding the canvas.
npm install @workflowbuilder/sdk to embed the editor, clone the repo for the full reference stack with Temporal integration.

Read the docs

Explore on GitHub

Four people working on laptops around a wooden table in a rustic room with a hanging light fixture.

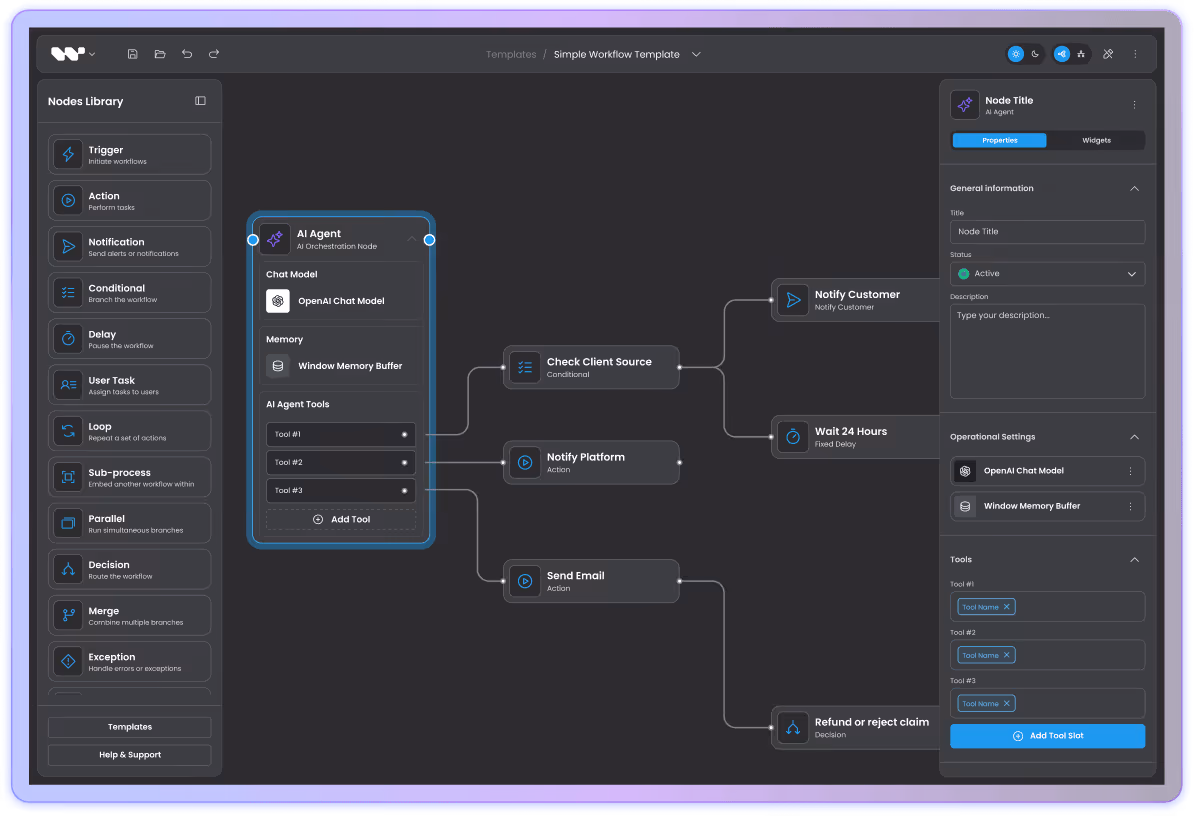

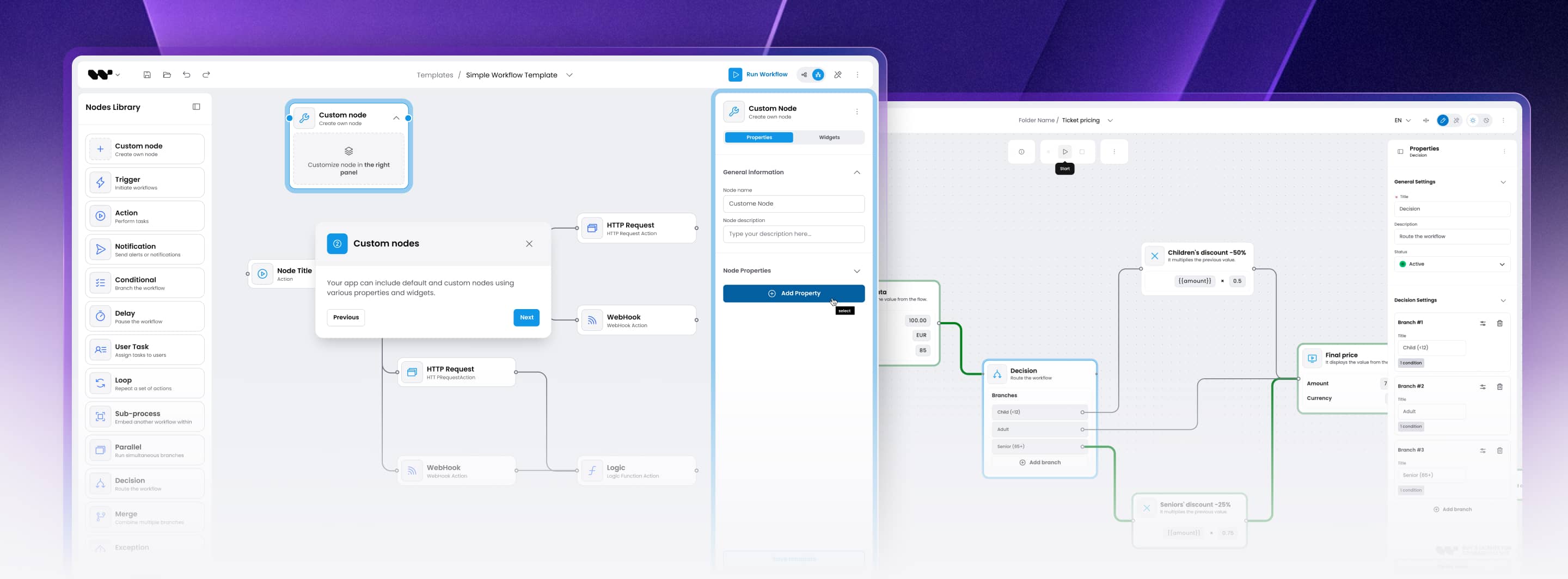

Workflow Builder editor canvas with agent nodes

Two ways to ship

Pick the level of integration that fits your team

Embed only the editor via NPM, or clone the full reference stack with editor + back-end + Temporal worker. Same React SDK, same JSON, same custom node API.

A: Just the editor (NPM)

npm install @workflowbuilder/sdk

Drop the visual workflow editor into your existing React app. You have your own back-end and execution engine? Wire the editor to your APIs over HTTP. The canvas does not assume anything about your runtime.

B: Full reference stack

git clone https://github.com/synergycodes/workflowbuilder
cd workflowbuilder
pnpm install && pnpm dev:ai-studio

Frontend + reference back-end + Temporal worker running end-to-end in minutes. Same code powers the AI Studio demo. Fork the back-end if you want; swap the Temporal worker for another engine through the three port interfaces - swappable by design, proven with Temporal.

See the reference stack→

Code examples

From install to a running editor

The essentials to get the editor rendering. Full, copy-paste examples for custom nodes, persistence, and theming live in the docs.

layoutDirection: DOWN

1Install

Add the SDK with your package manager.

npmpnpmyarn

terminal

npm install @workflowbuilder/sdk
# or
pnpm add @workflowbuilder/sdk
# or
yarn add @workflowbuilder/sdk

2Basic usage

Mount the editor and wire one save handler.

<WorkflowBuilder.Root>integration

App.tsx

import { WorkflowBuilder } from '@workflowbuilder/sdk';
import '@workflowbuilder/sdk/style.css';

export default function App() {
  return (
    <WorkflowBuilder.Root
      name="my-workflow"
      layoutDirection="DOWN"
      nodeTypes={[]}
      integration={{
        strategy: 'props',
        onDataSave: async (data) => {
          console.log('Saving:', data);
          return 'success';
        },
      }}
    />
  );
}

3Extend

Custom nodes, persistence, theming.

defineNodeTemplate()--wb-*

extend.ts

// Typed custom nodes
const task = defineNodeTemplate({ type: 'task' });

// Persistence: 'props' | 'api' | 'localStorage'
integration={{ strategy: 'api' }}

// Theme the canvas with CSS variables
:root { --wb-node-bg: #fff; }

See the full Quick Start in the docs→

Key features

13 production features that ship with the React SDK

Everything the canvas teams typically spend 14-25 weeks building from scratch. Community Edition covers the foundation; Enterprise adds advanced canvas plugins, Flow Runner, and Figma Kit.

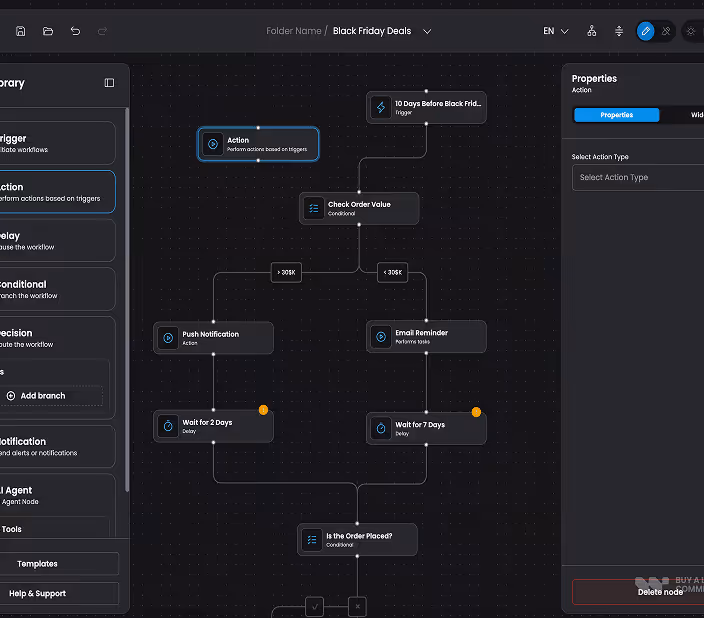

Visual Workflow Canvas
Pan, zoom, multi-select, lasso, marquee. Tuned for 500+ nodes performance. Community.

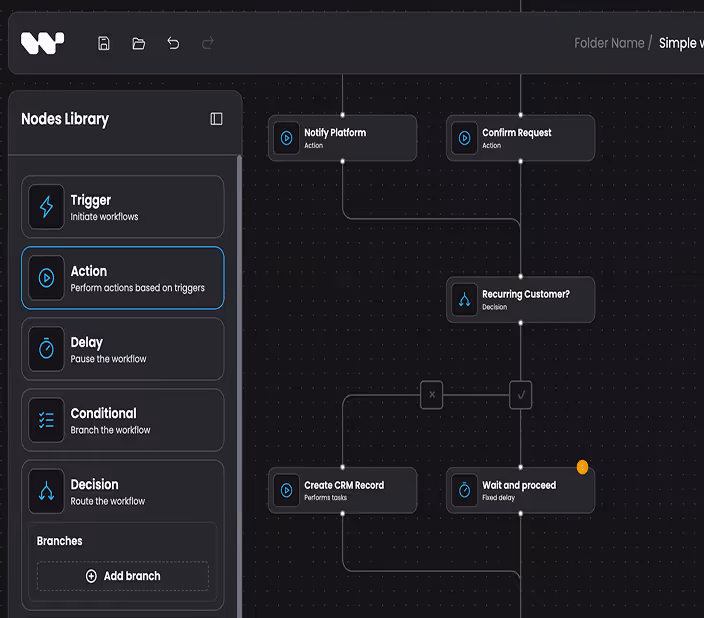

Custom nodes & node library
Drag-and-drop React components from a configurable node library. Bring your design system, icons, interaction patterns. Community.
Schema-driven properties panel
Define TypeScript node schemas, get a typed properties panel automatically. JSON Schema in, validated form out. Community.
JSON serialization
Workflow state in, workflow state out. Back-end-agnostic, version-control friendly, easy to diff. Community.
Auto-save and persistence
Local-storage or your API endpoint - the editor saves as users type. No data loss on page refresh. Community.

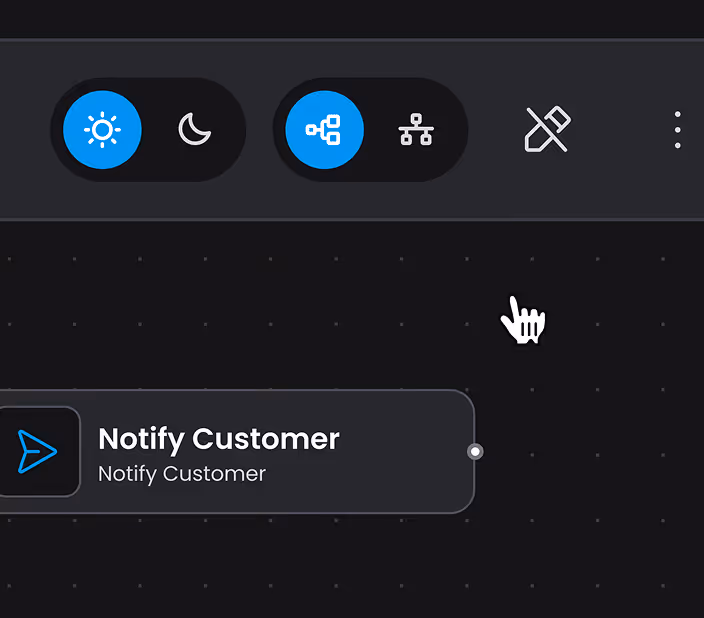

Read-only mode
Display workflows to viewers without edit permissions. Same canvas, locked controls. Perfect for review queues and audit trails. Community.

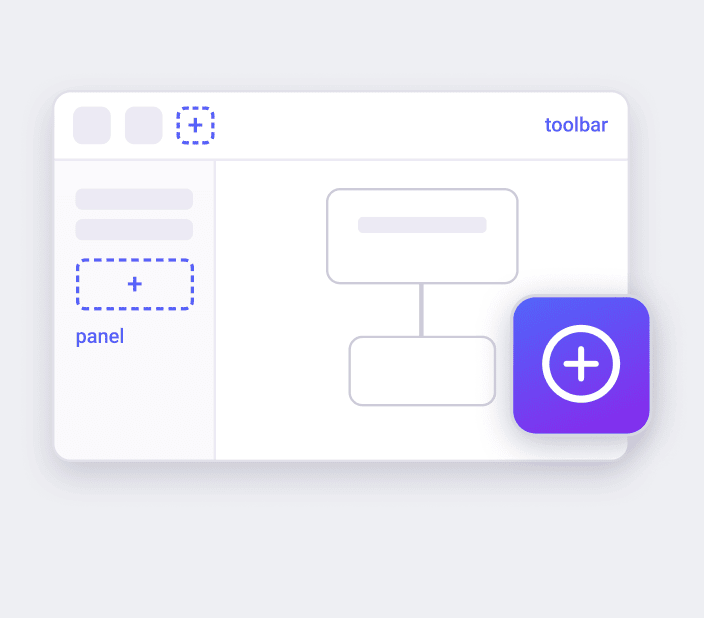

Plugin architecture
Extend the editor without forking core. Add canvas tools, side panels, command palette items, custom toolbars. Community.
TypeScript-first API
Full type definitions for every public API. Autocomplete in your IDE for every node, schema, and plugin signature. Community.

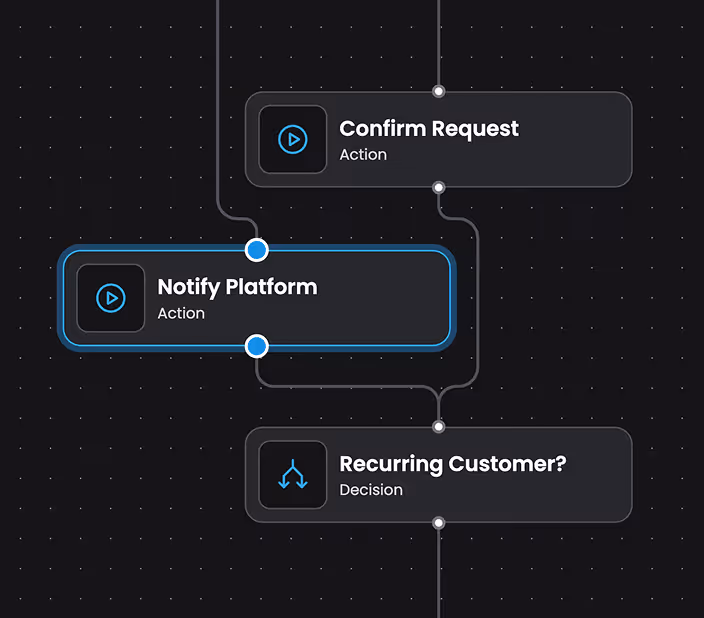

Smart edge routing
Automatic routing avoids overlaps and reads cleanly at any zoom level. No manual layout. Enterprise.

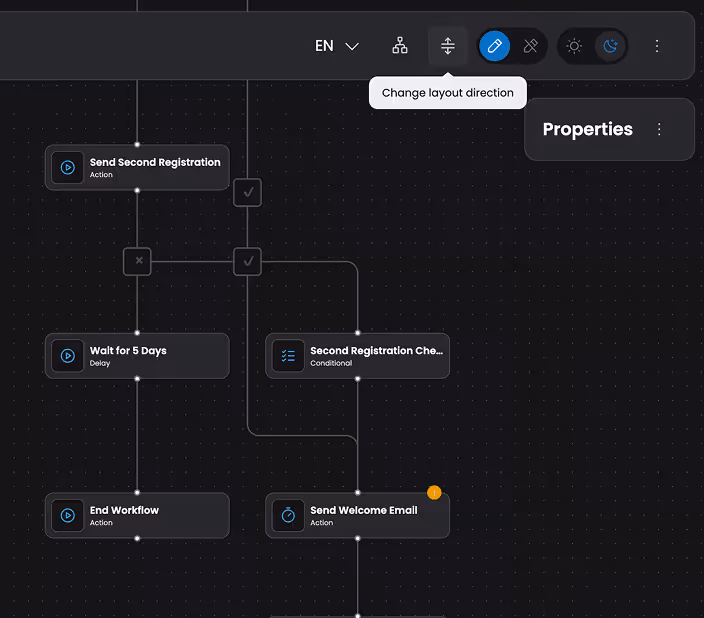

ELK auto-layout
One-click auto-layout powered by ELK. Vertical, horizontal, layered. Enterprise.

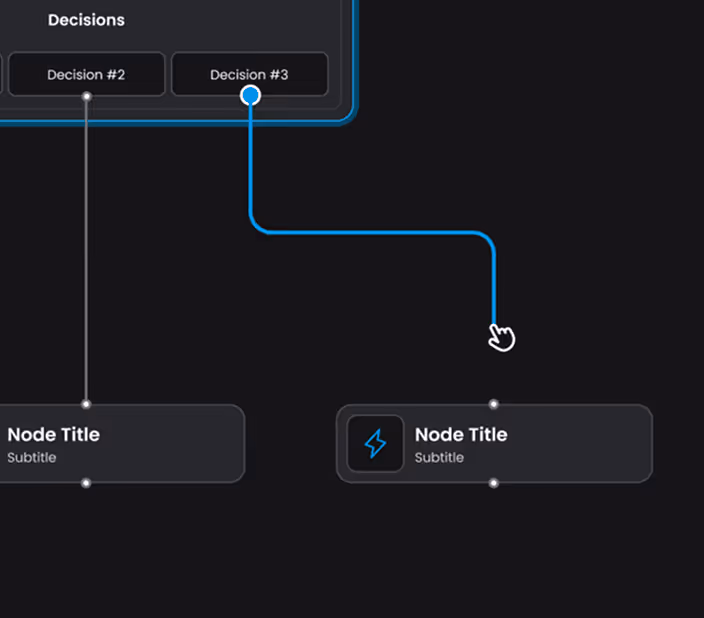

Edge Reshaping
Interactive handles let users adjust edge paths. Drag waypoints, snap to grid. Enterprise.
Undo, redo, copy, paste
Full history stack with multi-node selection. Keyboard shortcuts wired in. Production-grade editing UX. Community.
Theming & Figma Kit
Theme the canvas via design tokens. Figma Kit included with Enterprise - 1:1 components for design-first teams. Theming Community, Figma Kit Enterprise.

See all features

See the full Community vs Enterprise comparison→

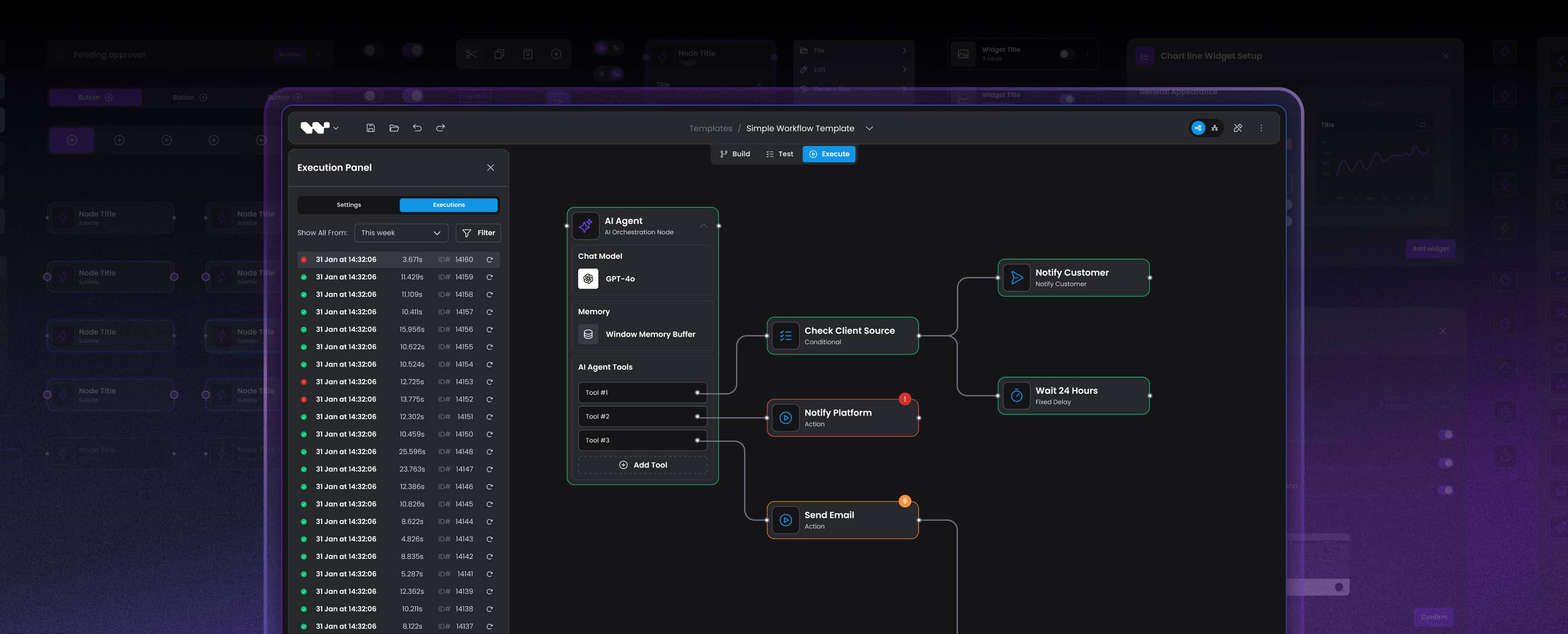

Workflow Builder editor canvas with AI agent nodes

BUILD OR BUY?

Best fit when

You should reach for Workflow Builder if...

You ship a production workflow editor in a B2B SaaS

Schema-driven properties panels, smart edge routing, auto-layout, plugin system, JSON serialization - skip the 14-25 weeks of canvas plumbing and focus on domain logic. Production-ready means real customers, real complexity, not a tutorial demo.

You want full source code and Apache 2.0 license

Community Edition is Apache 2.0 on public GitHub. Commercial use OK, no copyleft, no relicensing. Enterprise adds source code access to Enterprise-only components, Flow Runner plugin, Figma Kit. Either way - your code stays your code.

You have an existing back-end

Wire the editor to your APIs over HTTP. Your engine, your activities, your runtime. The reference back-end exists for teams that do not have one yet - skip it if you do.

You want to swap execution engines without rewriting the UI

Temporal ships today as the reference adapter. Three main port interfaces (WorkflowEnginePort, ActivityRunnerPort, EventEmitterPort), plus a LoggerPort, let you integrate another engine without changing the editor or JSON - swappable by design, proven with Temporal.

COMPARE WITH ALTERNATIVES

vs React Flow

library vs production SDK

vs n8n

SaaS vs embeddable SDK

vs build from scratch

14-25 weeks vs npm install

Built in the open

Apache 2.0, public GitHub

Workflow Builder is developed in the open. Star the repo, file issues, send PRs, follow releases. The full three-block stack ships in Community Edition.

Commercial use, no copyleft, no relicensing

Editor, reference back-end and worker, all open

Your code stays your code

Explore on GitHub

Open source story

AboutPublic

Embed a production workflow editor into your React app. Editor + reference back-end + execution worker.

workflowbuilder.io

reacttypescriptworkflow-engineno-codeapache-2.0

Readme

Apache-2.0 license

3 composable blocks
